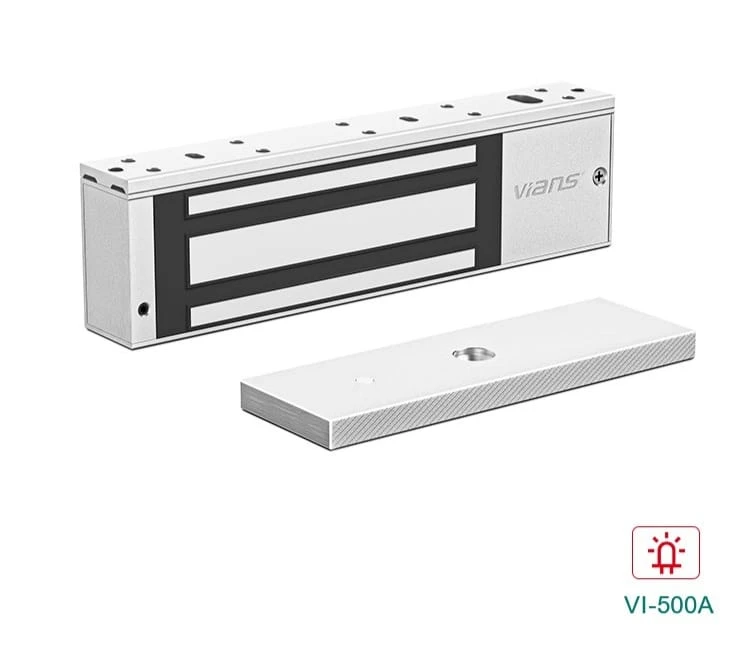

VI-500A 500KG Single Door EM Lock

VI-500A 500KG Single Door EM Lock

500kg Holding Force Magnetic Lock – 500kg (1200lbs) holding force magnetic lock is for single or double heavy door, such as metal door, wooden door, fireproof door, sliding door and so on. It is suitable for the card reader which is without time delay, or opened directly by inside control.


Products Name

500KG 1200Lbs single Door Magnetic Lock

Lock Size

265L*71W*40H(mm)

Armature Plate

185L*60W*13H(mm)

Holding Force

500kg (1200lbs)

Model

500A

500AS

500ADS

500AST

Red or Green LED

Red Color

Door signal

No

No

Yes

Yes

Lock signal

No

Yes

Yes

Yes

Time Delay

No

No

No

Yes

Input Voltage

DC12V or (Adjustable DC24V)

Working current

12V/600mA 24V/300mA

Door Type Applicable

Wooden door, Glass door ,Metal door , Fireproof door

Security Type

Power off to open

Weight

4.5kg

Standard Package

6PCS/CTNS

Carton Weight

27KG

Carton Size

58.2*9.8*22.5 cm



500kg Holding Force Magnetic Lock – 500kg (1200lbs) holding force magnetic lock is for single or double heavy door, such as metal door, wooden door, fireproof door, sliding door and so on. It is suitable for the card reader which is without time delay, or opened directly by inside control. Special anti-residual magnetism designed makes the access control automation safer and electric lock more durable
