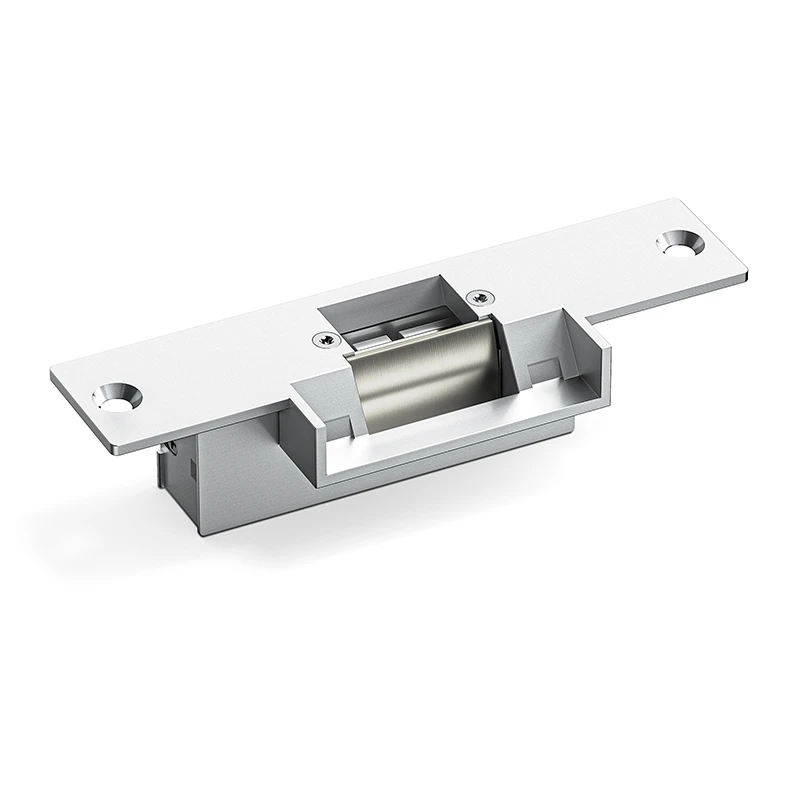

VI-700/VI-700S Fail Secure Standard Electric Strike

Parameters
Dimensions
Download

Product Parameter	Parameter Description
Model	VI-700	VI-700S
Product Name	Standard Electric Strike

Lock Size	150Lx40Wx28H(mm)
Holding Stength	500KG
Input Voltage	DC12V±10%
Working Current	200mA
Opening Mode	90 Degree Swing Door
Material of Housing	Zinc alloy
Door Type Applicable	Wooden door , Glass door ,Metal door , Fireproof door
Signal output	No	Yes
Feature	Fail Secure(NO) ; Fail Safe(NC)
Surface Temperature	Within +20℃
Suitable Temperature	-10~+55℃(14-131F)

Weight	0.35kg
Standard Package	70 PCS/carton
Carton Weight	24.5kg
Carton Size	54.42030.5cm

VI-700/700S is designed for wooden door, metal door, PVC door and so on. The products of our company are various and full-equipped.The operating principle of electric strike is that the electric power turns into magnetic force. Electric strike has two working modes: one of the mode is door locked when power off. The another modes is door locked when power on.

FAQ
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
