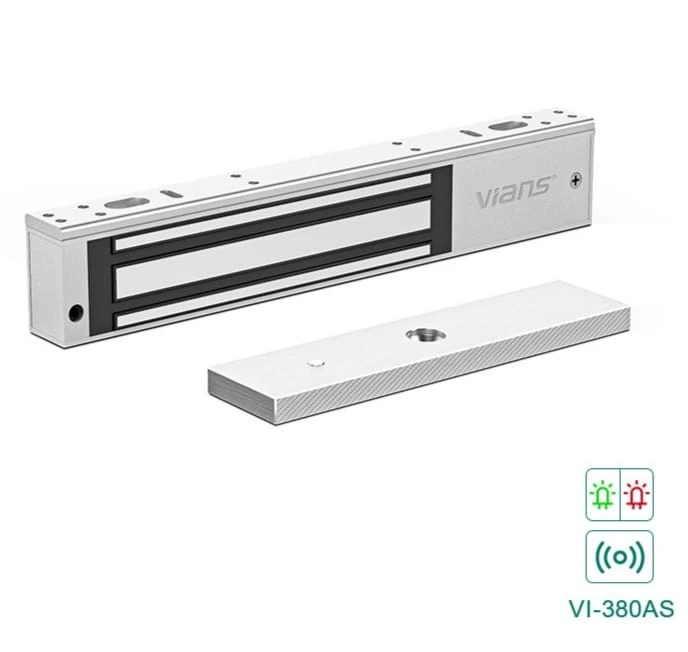

VI-380AS 380KG Single Door Magnetic Lock with LED

Adopt international leading production equipment and packing technology.
Holding force higher 20% than other manufactures.
High security, Usually used in access control system. Can opened by exit button, reader etc.
Exquisite appearance, suitable for various places.

Parameters
Dimensions
Download

Products Name	380KG 800 Lbs single Door Magnetic Lock
Lock Size	285L55W29H(mm)
Armature Plate	190L45W11H(mm)
Holding Force	380kg (800lbs)
Model	380A	380AS	380ADS	380AST
Red or Green LED	Red LED	√	√	√
Door signal	No	No	Yes	Yes
Lock signal	No	Yes	Yes	Yes
Time Delay	No	No	No	Yes
Input Voltage	DC12V or (Adjustable DC24V)
Working current	12V/500mA 24V/250mA
Door Type Applicable	Wooden door , Glass door ,Metal door , Fireproof door
Security Type	Power off to open
Weight	2.5kg
Standard Package	10PCS/CTNS
Carton Weight	25KG
Carton Size	37.530.715cm

Product Advantage
Adopt international leading production equipment and packing technology.
Holding force higher 20% than other manufactures.
High security, Usually used in access control system. Can opened by exit button,reader etc.
Exquisite appearance, suitable for various places.
