VI-380B 380KG Double Door Electric Lock

VI-380B 380KG Double Door Electric Lock

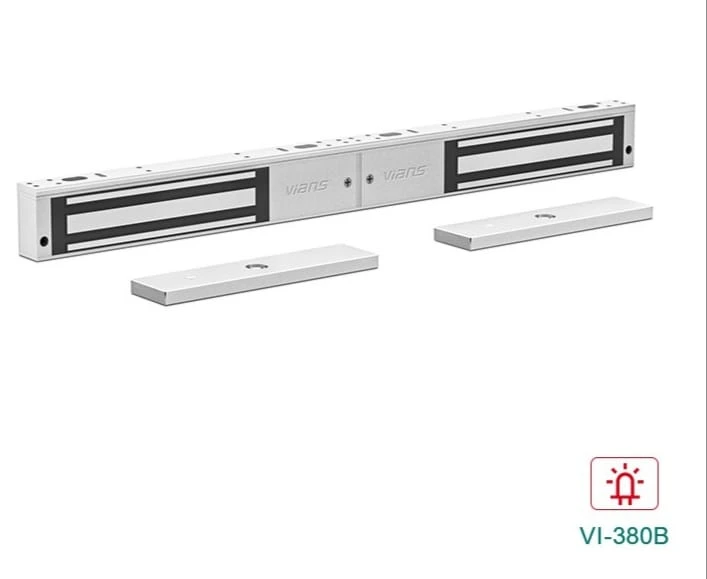

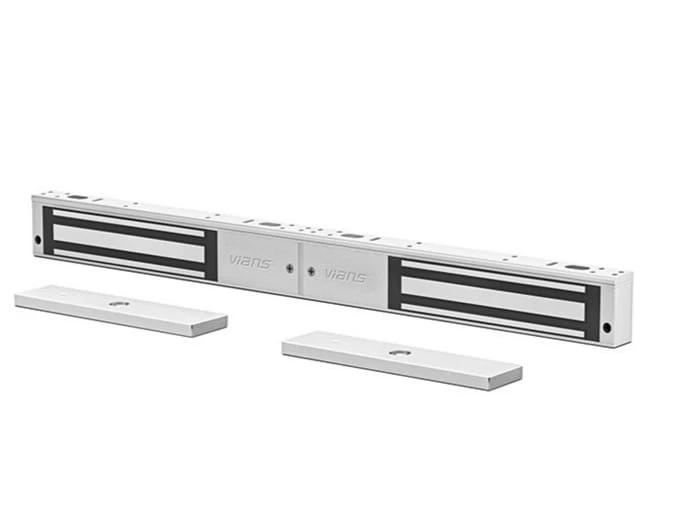

800lbs double door Magnetic Lock is for glass door, wooden door, fireproof door, sliding door and metal door. Dual Voltage 12 or 24 VDC is optional. CE and UL approves. Except for With LED indicator, it can be classified into double door electric lock.


Product Name

380KG 800 Lbs Double Door Magnetic Lock

Lock Size

570L*55W*29H(mm)

Armature Plate

190L*45W*11H(mm)

Holding Force

380kg (800lbs)*2

Model

380B

380BS

380BDS

380BST

Red or Green LED

Red LED

Door signal

No

No

Yes

Yes

Lock signal

No

Yes

Yes

Yes

Time Delay

No

No

No

Yes

Input Voltage

DC12V or(Adjustable DC24V)

Working current

12V/500mA*2 24V/250mA*2

Door Type Applicable

Wooden door , Glass door ,Metal door , Fireproof door

Security Type

Power off to open

Weight

5kg

Standard Package

6PCS/CTNS

Carton Weight

30KG

Carton Size

61*22*15 cm



800lbs double door Magnetic Lock is for glass door, wooden door, fireproof door, sliding door and metal door. Dual Voltage 12 or 24 VDC is optional. CE and UL approves. Except for With LED indicator, it can be classified into double door electric lock. Glass door, wooden door, fireproof door, sliding door and metal door is allowed to be installed. Inbuilt dry contacts lock status signal output ( NO, NC, COM), door status signal output ( NO, NC, COM) make it special.
