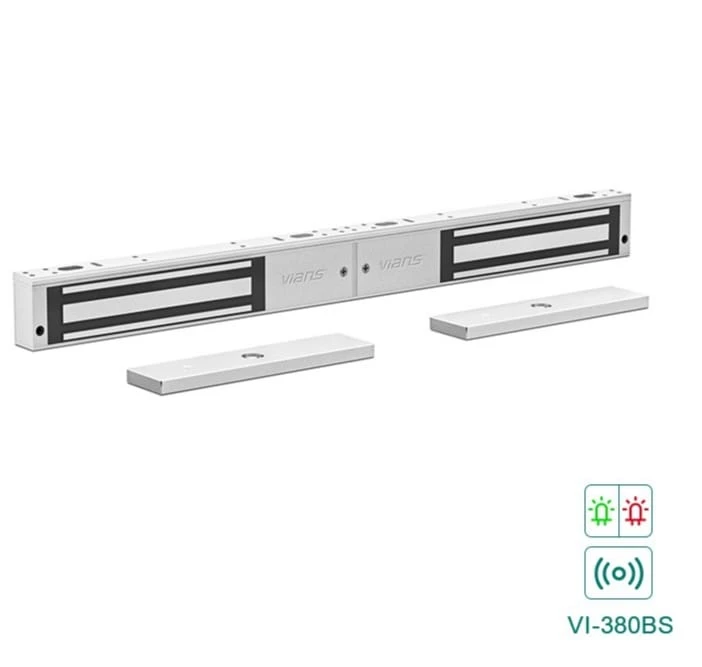

VI-380BS 380KG Double Door Electric Lock with LED

Need help?

Don't hesitate to contact us so we can help you in the best way possible. You can contact us by clicking the link below for any questions, suggestions, or support requests.

Click for Support
VI-380BS 380KG Double Door Electric Lock with LED

VI-380BS 380KG Double Door Electric Lock with LED

Surface Mounted Single Door Magnetic Lock 380KG 800Lbsv
An electromagnetic lock, magnetic lock, or maglock is a locking device that consists of an electromagnet and an armature plate used for access control door locks.


Product Name

380KG 800 Lbs Double Door Magnetic Lock

Lock Size

570L*55W*29H(mm)

Armature Plate

190L*45W*11H(mm)

Holding Force

380kg (800lbs)*2

Model

380B

380BS

380BDS

380BST

Red or Green LED

Red LED

Door signal

No

No

Yes

Yes

Lock signal

No

Yes

Yes

Yes

Time Delay

No

No

No

Yes

Input Voltage

DC12V or(Adjustable DC24V)

Working current

12V/500mA*2 24V/250mA*2

Door Type Applicable

Wooden door , Glass door ,Metal door , Fireproof door

Security Type

Power off to open

Weight

5kg

Standard Package

6PCS/CTNS

Carton Weight

30KG

Carton Size

61*22*15 cm



Surface Mounted Single Door Magnetic Lock 380KG 800Lbsv
An electromagnetic lock, magnetic lock, or maglock is a locking device that consists of an electromagnet and an armature plate used for access control door locks.
By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut.
Unlike an electric strike access control door lock a magnetic lock has no interconnecting parts and is therefore not suitable for high security applications because it is possible to bypass the lock by disrupting the power supply.
The whole system includes electric lock, power suply, access controller, exit button, door bell or RFID cards.
